*All new from Taulman 3D*

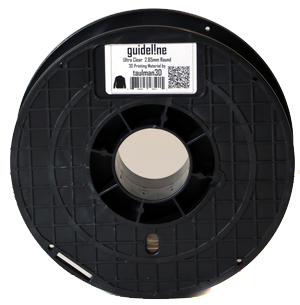

Taulman Guidline Filament

From Taulman 3D:

guidel!ne is a clear PETG based polymer that prints at 250C. guidel!ne is very easy to print needing only a small amount of retraction.  A key feature of guidel!ne is that one can easily print small hollow tubes without the issue of heat build-up deforming the tube.

guidel!ne is a unique high strength PETG based material with excellent high temperature printing capabilities.   Users know that printing small features of some parts can be difficult due to thermal build-up.  guidel!ne is much less susceptible to these thermal issues allowing for finer detail without distortion.  guidel!ne is also released as a starting point for individuals and companies wishing to obtain eventual FDA/CE certification for a device knowing that the raw material itself is listed with the FDA and has already passed specific FDA testing.    guidel!ne is sold as a raw material modified in form only into 3d printing line and most important, extruded in a manner that keeps contaminates out of the material during the cooling process, where contaminates and bacteria could be embedded in the soft extrusion.  In addition, pH and ORP levels are monitored and adjusted to maintain acceptable level.

Information provided to the user will be in sync with the FDA’s  “Technical Considerations for Additive Manufactured Devices Draft Guidance for Industry and Food and Drug Administration Staff”.  Section “C” “Material Controls”. While COA’s will be the responsibility of the end user, taulman3D will provide information to support such efforts.

guidel!ne meets the following:
ISO 11607-1: 2006
ISO 10993
USP Class VI
USP <661>
DMF (Drug Master File) number  16525

Recommended print settings:

Print temp = 245C – 252C

Nozzle = any size

Print speed = ABS speeds

Retraction = .5mm/.1mm nozzle or for a .5mm nozzle = 2.5mm

Print bed =            Hot = Glass heated to 45C with coat of PVA*
*Elmers Glue All is suggested as it’s considered food safe.
For Medical use, PEI sheet heated to 70C
NOTE:  It is best “NOT” to let the bed cool to ambient, but only down to 35C in end of g-code.
This will reduce glass breakage

STORAGE: Every order comes with one large resealable bag with slider + an extra desiccant included. It is important to store your filaments in a dry area to avoid moisture absorption when not in use. The bag and desiccant ensure your filaments stay dry and free of dust & dirt to make sure your next project prints without a hitch.

*All Taulman3D materials are made in the U.S.

*All guidl!ne filaments come in 1.1 lb spools

*For further information on guidl!ne, check out the Taulman 3D website.

*Print Your Mind 3D is an authorized Canadian distributor of Taulman 3D products.
